COMPACT CRANES

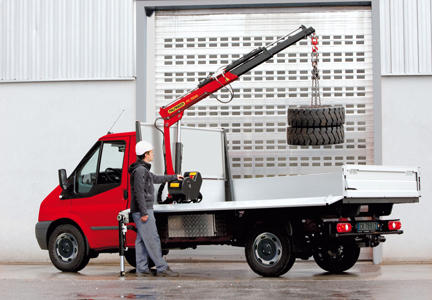

PC 1500 Compact

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

DOWNLOAD BROCHURE

teCHNICAL DATA

Max. lifting moment
1.4mt
Max. lifting capacity
990kg
Max. hydraulic outreach
3.1mt
Max. manual outreach
4.2m
Slewing angle
325°
Slewing torque with 1 gear
0.2mt
Fitting space required (std)
0.50m
Max. operating pressure
200bar
Dead weight (std.)
164kg
Width folded
0.64m

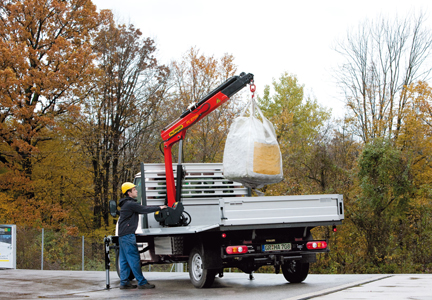

PC 2700 Compact

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

DOWNLOAD BROCHURE

teCHNICAL DATA

Max. lifting moment
2.6mt
Max. lifting capacity
2000kg
Max. hydraulic outreach
5.0m
Max. manual outreach
6.0m
Slewing angle
325°
Slewing torque with 1 gear
0.31mt
Fitting space required (std)
0.50m
Max. operating pressure
200bar
Dead weight (std.)
207kg
Width folded
0.77m
Max. lifting moment - 2.6mt
Max. lifting capacity - 2000kg
Max. hydraulic outreach - 5.0m
Max. manual outreach - 6.0m
Slewing angle - 325°
Slewing torque with 1 gear - 0.31mt
Fitting space required (std) - 0.50m
Max. operating pressure - 200bar
Dead weight (std.) - 207kg
Width folded - 0.77m
